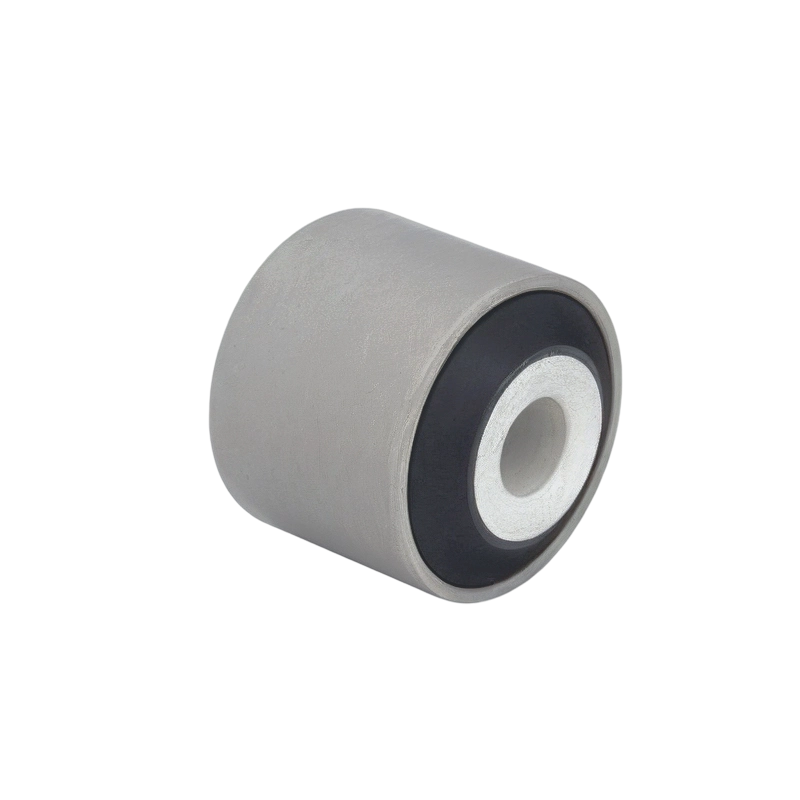

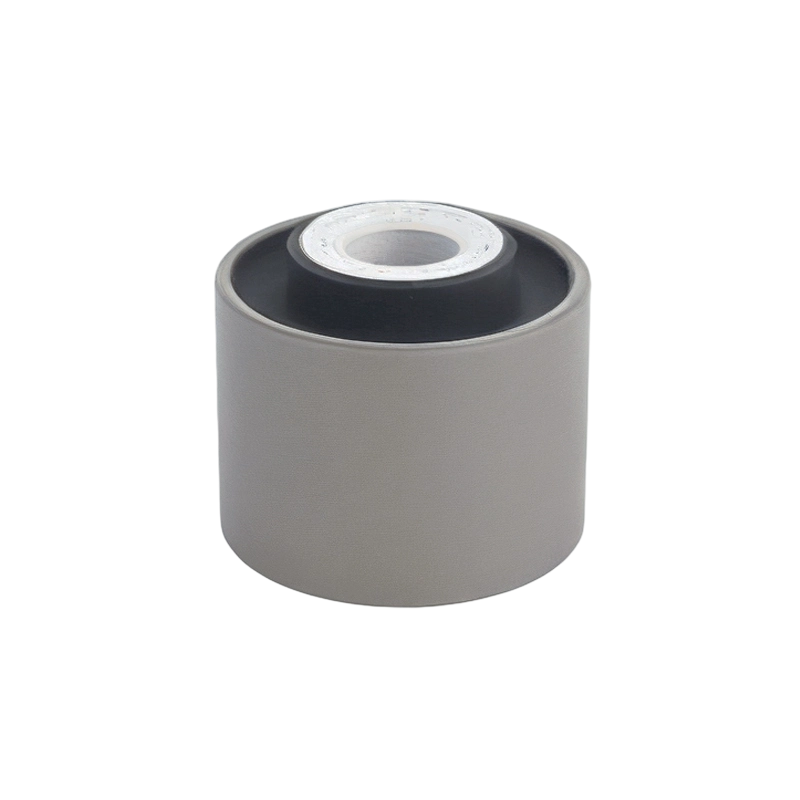

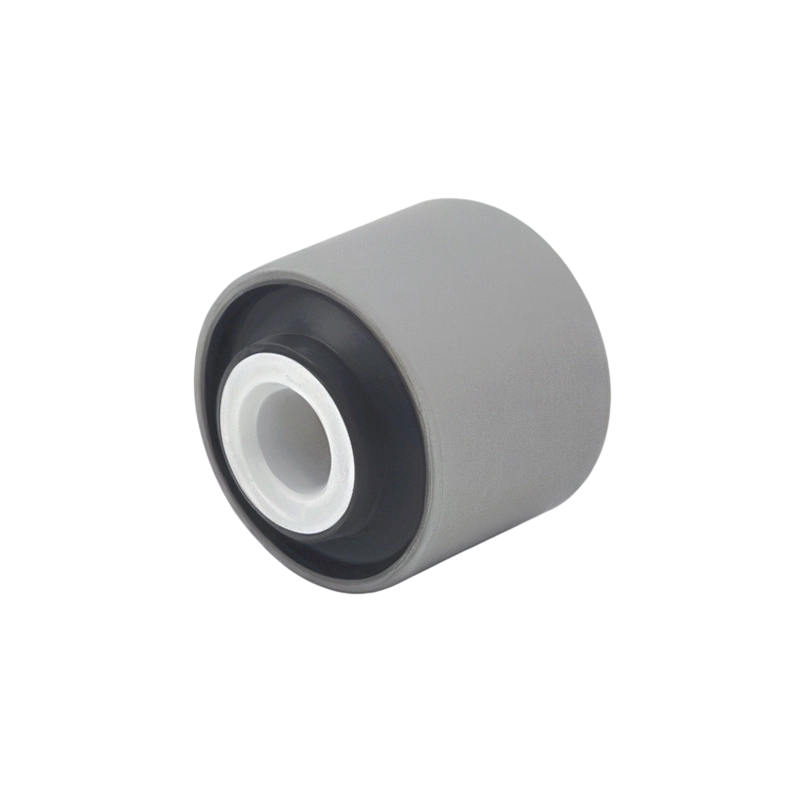

Multi-Stage Buffer Suspension Control Arm Bushing for Mercedes-Benz

OE Numbers:
2103520665 1403524565
1403524865

Compatible Vehicle Series:
MERCEDES-BENZ S-CLASS (W140) 300                    S-CLASS Coupe (C140) SEC/CL 500
MERCEDES-BENZ (Imported) - S-Class (W140) - 300 SE, SEL/S320 (140.032, 140.033)  [M 104.990;M 104.994]  (1991.03 - 1998.10)

Contact Us
PREV：Control Arm/Trailing Arm Suspension Bushing with Washer for Mercedes-Benz NEXT：Anti-Vibration Bracket Bushing for Stabilizer Link (Mercedes-Benz)
  • Description
  • Advantages
  • Suitable For
  • Contact Us

The Multi-Stage Buffer Suspension Control Arm Bushing for Mercedes-Benz is a composite outer diameter bushing designed for Mercedes-Benz suspension systems. Its core feature is a stepped structure with two outer diameter sizes: 40mm and 25mm. This allows for varying degrees of locking force at the mounting site and multi-stage buffering across different force amplitudes. The 38mm thickness combined with a 12mm precision inner diameter helps guide the swing arm's movement. This highly functional part aims to finely tune chassis response.

Stepped Outer Diameters: 40mm and 25mm specifications.
Core Thickness: 38mm overall.
Precision Connection: 12mm inner diameter ensures bolt stability.
Geometry: Combined parameters of 40mm * 37.9mm * 12mm.
Composite Design: Leverages diameter differences for segmented press-fitting, reducing single-point pressure on the mounting hole.

Multi-stage Damping Feedback: Provides different damping coefficients under small vibrations versus large impacts.
Accurate Axial Positioning: Ensures the bushing does not shift axially under dynamic loads.
Installation Stress Optimization: Segmented outer diameters make press-fitting more controllable, reducing scratches on aluminum seat holes.
Lateral Stability Improvement: The 40mm large end provides necessary lateral rigidity for cornering.
Clearance Reduction: Precision tolerance control eliminates minor joint looseness for more direct steering.
