High-Rigidity Precision Positioning Suspension Bushing for Mercedes-Benz

OE Numbers:
2113332514
2113332814
2113331014
2113332914

Compatible Vehicle Series:
MERCEDES-BENZ SL (R230) (W211) s2S (C219)
MERCEDES-BENZ (Imported) - CLS (C219) - CLS 350 (219.356)  [M 272.964]  (2004.10 - 2010.12)
MERCEDES-BENZ (Imported) - CLS (C219) - CLS 350 (219.357)  [M 272.985]  (2006.04 - 2010.12)
MERCEDES-BENZ (Imported) - CLS (C219) - CLS 500 (219.372)  [M 273.960]  (2006.04 - 2010.12)
MERCEDES-BENZ (Imported) - CLS (C219) - CLS 500 (219.375)  [M 113.967]  (2004.10 - 2010.12)
MERCEDES-BENZ (Imported) - CLS (C219) - CLS 63 AMG (219.377)  [M 156.983]  (2006.04 - 2010.12)
MERCEDES-BENZ (Imported) - E-Class (W211) - E 200 Kompressor (211.042)  [M 271.941]  (2002.11 - 2008.12)
MERCEDES-BENZ (Imported) - E-Class (W211) - E 240 (211.061)  [M 112.917;M 112.913]  (2002.03 - 2008.12)
MERCEDES-BENZ (Imported) - E-Class (W211) - E 280 (211.054)  [M 272.943]  (2005.03 - 2008.12)
MERCEDES-BENZ (Imported) - E-Class (W211) - E 320 (211.065)  [M 112.949]  (2002.03 - 2008.12)
MERCEDES-BENZ (Imported) - E-Class (W211) - E 350 (211.056)  [M 272.964]  (2005.03 - 2008.12)
MERCEDES-BENZ (Imported) - E-Class (W211) - E 500 (211.070)  [M 113.967]  (2002.03 - 2008.12)
MERCEDES-BENZ (Imported) - E-Class (W211) - E 55 AMG Kompressor (211.076)  [M 113.990]  (2002.10 - 2008.12)
MERCEDES-BENZ (Imported) - SL (R230) - 300 (230.454)  [M 272.949]  (2009.04 - 2012.01)
MERCEDES-BENZ (Imported) - SL (R230) - 350 (230.458)  [M 272.968]  (2008.04 - 2012.01)
MERCEDES-BENZ (Imported) - SL (R230) - 55 AMG (230.474)  [M 113.992]  (2002.06 - 2012.01)
MERCEDES-BENZ (Imported) - SL (R230) - 63 AMG (230.470)  [M 156.981]  (2008.03 - 2012.01)
MERCEDES-BENZ (Imported) - SL (R231) - 350 (231.457)  [M 276.954]  (2012.11 - 2014.04)
MERCEDES-BENZ (Imported) - SL (R231) - 400 (231.465)  [M 276.825]  (2014.04 - )
MERCEDES-BENZ (Imported) - SL (R231) - 400 (231.466)  [M 276.825]  (2016.12 - )

Contact Us
PREV：Heavy-Duty Suspension Strut Shock Absorbing Bushing (80mm) for Mercedes-Benz NEXT：Large-Load Vibration Filtering Suspension Control Arm Bushing for Mercedes-Benz
  • Description
  • Advantages
  • Suitable For
  • Contact Us

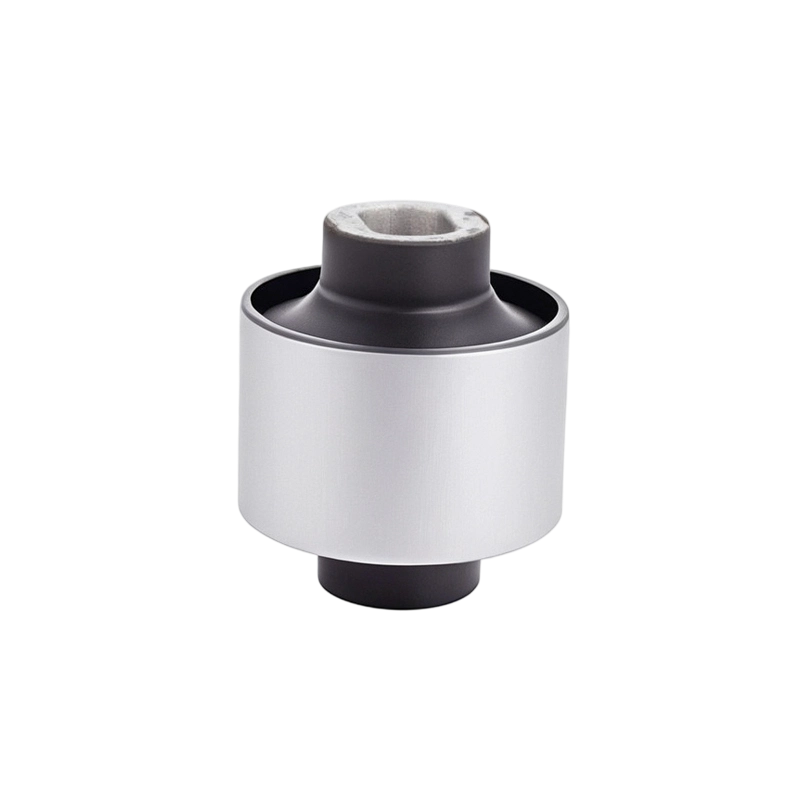

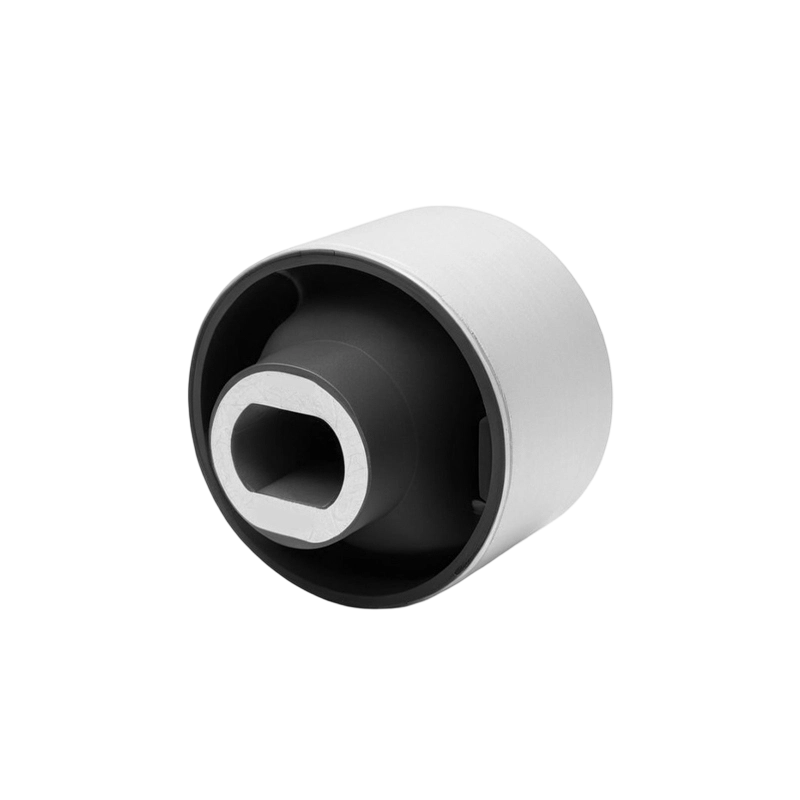

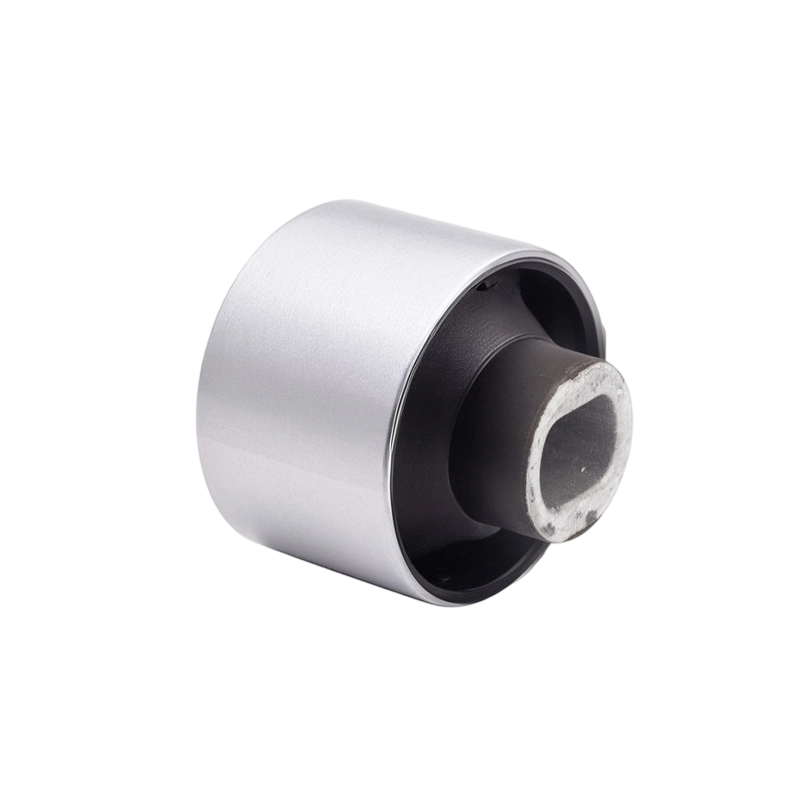

The High-Rigidity Precision Positioning Suspension Bushing for Mercedes-Benz is a specialized functional part in the Mercedes-Benz suspension positioning system, featuring an asymmetrical design with unequal internal and external lengths. The internal length reaches 80mm, while the external length is limited to 45mm, a design intended to provide directional guidance for the suspension swing arm. While absorbing longitudinal road loads, this bushing utilizes its 80mm overall thickness to share lateral thrust, ensuring that connection points do not generate excessive displacement under complex forces. This precise design logic helps maintain the overall feel of the chassis and is a functional part for ensuring the stability of the vehicle's travel trajectory.

Asymmetrical Structure: Internal length is 80mm, external length is 45mm.
Multi-dimensional Parameters: Thickness 80mm, inner diameter 24mm, outer diameters are 70mm and 37mm respectively.
Installation Specs: Outer diameter precision set at 70.4mm for accurate press-fit.

Enhanced Displacement Constraint: The longer internal axial design more effectively limits abnormal swing arm oscillation.
Multi-stage Damping: Leverages structural length differences to provide targeted buffering across various vibration amplitudes.
 Structural Stability: The thick rubber body design improves the component's fatigue strength, adapting to long-term high-load conditions.
