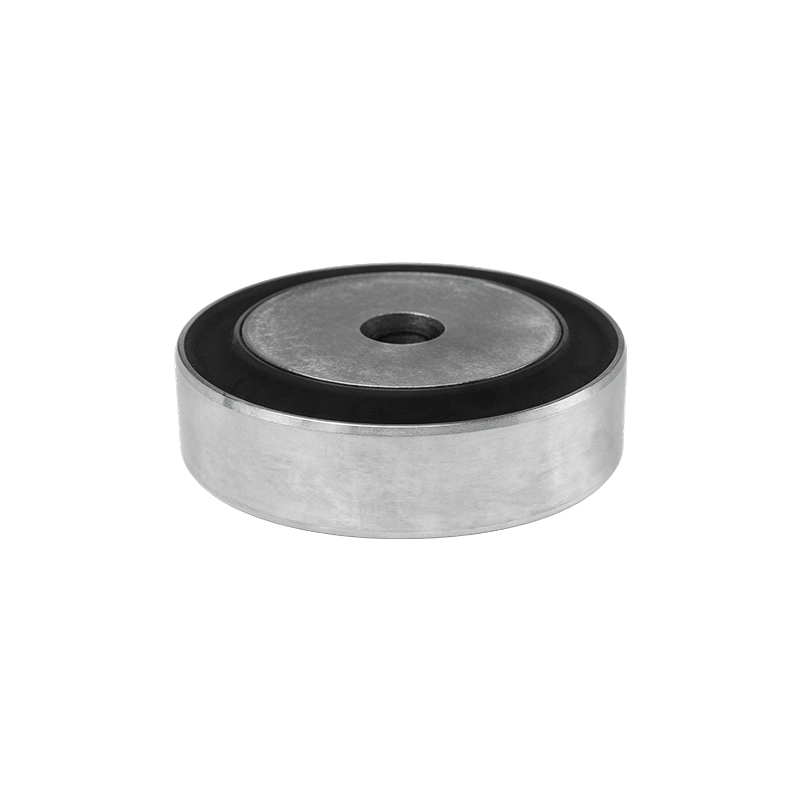

Axle Support Bracket Shock Isolation Bushing for Mercedes-Benz

OE Numbers:
2203510942

Compatible Vehicle Series:
MERCEDES-BENZ MERCEDES-BENZ Imported  S-Class

Contact Us
PREV：Anti-Vibration Bracket Bushing for Stabilizer Link (Mercedes-Benz) NEXT：Wheel Suspension/Control Arm Universal Positioning Bushing for Mercedes-Benz
  • Description
  • Advantages
  • Suitable For
  • Contact Us

The Axle Support Bracket Shock Isolation Bushing for Mercedes-Benz is a professional bushing applied to axle support positions. Its specifications are 66mm * 13mm * 32mm, creating a flexible connection between the axle bracket and the vehicle frame via a 13mm inner diameter. It isolates axle vibrations and supports axle weight during power transmission, reducing structural resonance generated by axle operation. This component has clear functional significance in lowering co-resonance.

Spec Data: 66mm * 13mm * 32mm.
Application: Axle Support. Bore Design: 13mm center diameter.
Physical Configuration: Flattened cylindrical structure optimized for axle support load characteristics.

Drive Vibration Isolation: Reduces mechanical vibration from the differential or axle to the body, improving passenger comfort.
Load Distribution: The 66mm outer diameter provides good load distribution, preventing local metal fatigue.
Axle Displacement Constraint: Secures the axle's physical position, helping maintain power transmission alignment.
Chassis Texture Improvement: Absorption of fine drive tremors results in a stronger overall vehicle feel.
