Engine Mount for BMW 5 Series Touring (E34)

OE Numbers:
11811133364

Compatible Models:
BMW
5 Series Touring (E34)
5 Series (E34) 525i 24V [1990.03 - 1995.08]

Key Dimensions:
Length: 64.5 mm
Outer Diameter: 70 mm

Contact Us
PREV：Transmission Mount for BMW 3/5/7 Series (E36/E46/E34/E39/E32/E38) NEXT：Transmission Mount for BMW 5/6 Series (E60/E61/E63/E64)
  • Description
  • Advantages
  • Suitable For
  • Contact Us

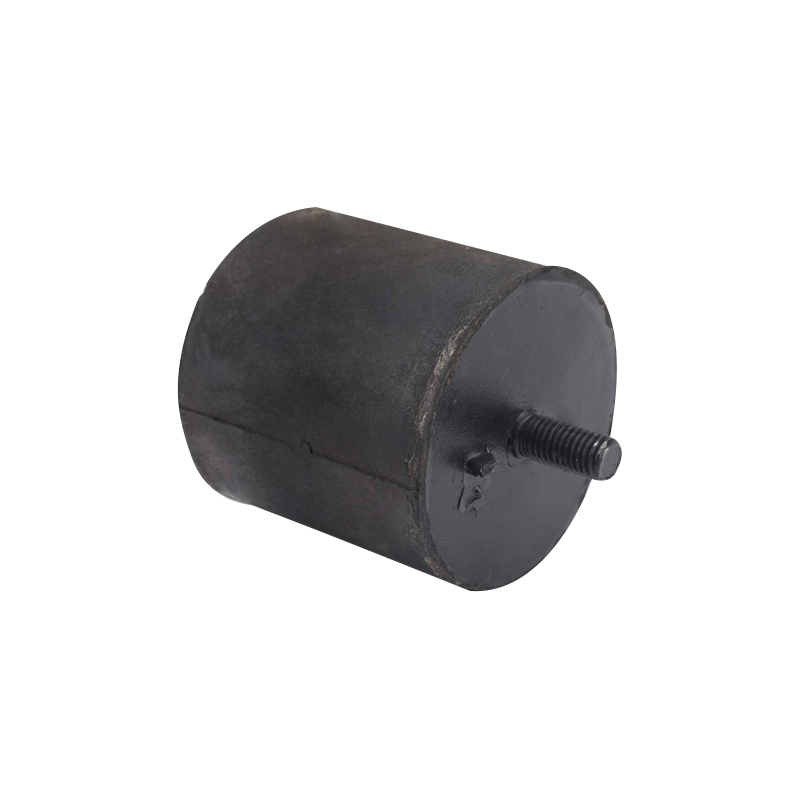

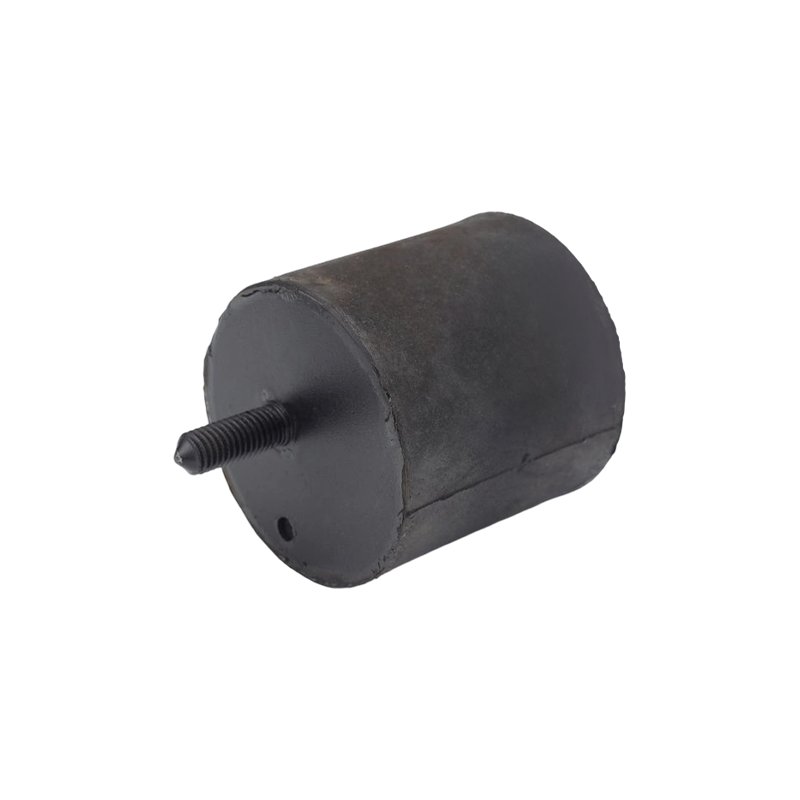

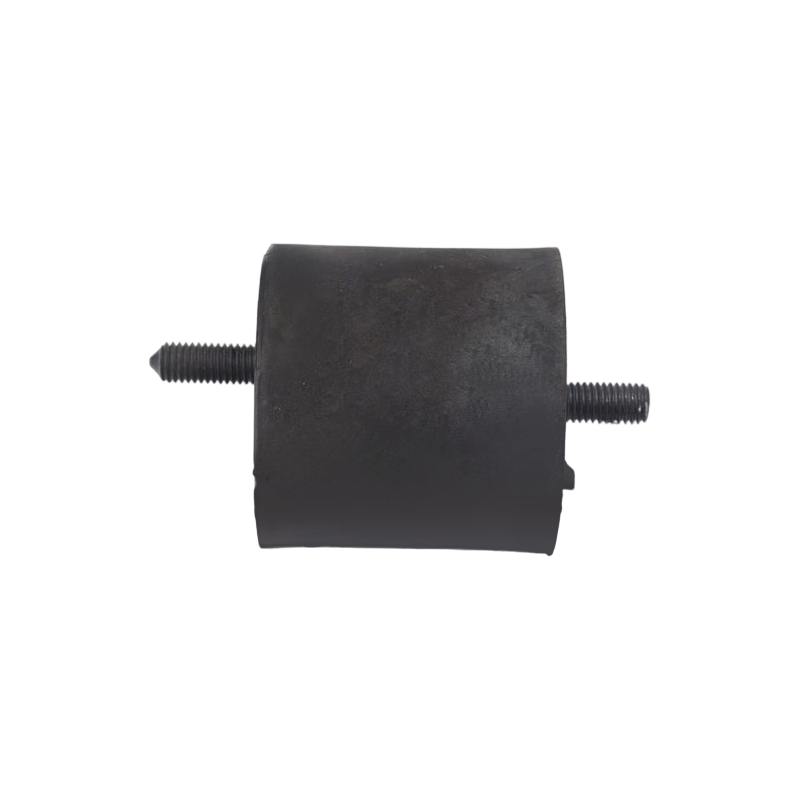

Engine mount for the BMW 5 Series Touring (E34), positioned at the right or left engine bay rail to carry the inline-six unit and decouple it from the body shell. The 70 mm outer diameter, 64.5 mm length hydraulic or solid-rubber design matches the OEM envelope for the M50 and M52 engine families fitted to the E34 Touring.

Cylindrical press-fit format: 70 mm OD pressed directly into the engine bracket — no separate retaining ring
64.5 mm height: Preserves OEM engine-to-subframe clearance on the E34 platform
Resistant to M50 / M52 oil mist: Rubber compound selected for compatibility with the valve-cover breather emissions of these engines
Bonded-in vertical stop: Internal bump stop limits upward engine travel under high-torque overshoot conditions
Correct for both saloon and Touring variants of the E34 five-series

Eliminates the cold-start vibration felt through the E34 steering column at idle
Preserves correct throttle body and air-flow meter alignment by holding the engine on-axis
Prevents cooling hose contact with the engine bay strut brace caused by engine sag on worn mounts
Compatible with 520i, 525i, 530i, 540i petrol and 525tds diesel E34 engine variants
Press-in replacement that can be completed with standard workshop tooling in under one hour
