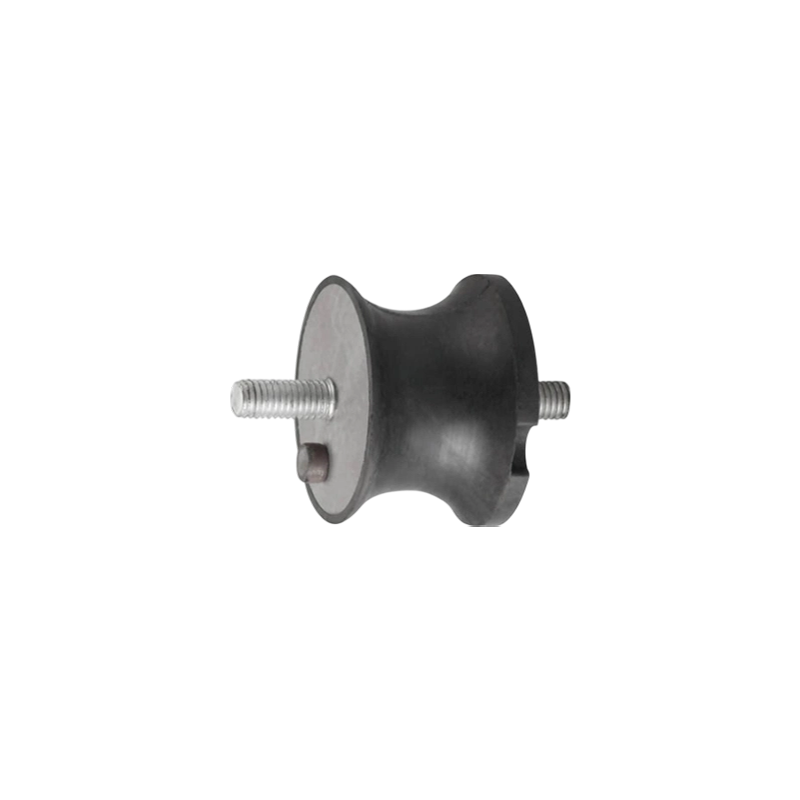

Transmission Mount for BMW 5/7 Series (E39/E38/E65/E66) and ALPINA

Home / Products / Transmission Mount / BMW Transmission Mount / Transmission Mount for BMW 5/7 Series (E39/E38/E65/E66) and ALPINA

Transmission Mount for BMW 5/7 Series (E39/E38/E65/E66) and ALPINA

OE Numbers:
22316771130
22321092897

Compatible Models:
BMW / ALPINA
BMW 5 Series (E39) [1995.11 - 2003.06]
BMW 5 Series Touring (E39) [1997.01 - 2004.05]
BMW 7 Series (E38) [1994.10 - 2001.11]
BMW 7 Series (E65 / E66 / E67)
BMW Z8 (E52) [2000.06 - 2003.06]
ALPINA B7 (E65)
ALPINA ROADSTER (Z8)
7 Series (E38) 740i / 740iL [1996.02 - 2001.07]
7 Series (E65) 735i / 735Li [2001.11 - 2004.12]
7 Series (E65) 740i / 740Li [2005.03 - 2008.08]
7 Series (E65) 745i / 745Li [2001.07 - 2005.03]
7 Series (E65) 750i / 750Li [2005.03 - 2008.08]

Key Dimensions:
Length: 34 / 70 mm
Outer Diameter: 36 / 46 / 50 mm
External Thread: M8 x 1.25

Contact Us
PREV：Engine Mount for BMW 5 Series Touring (E34) NEXT：Transmission Mount for BMW 5/6 Series (E60/E61/E63/E64)
  • Description
  • Advantages
  • Suitable For
  • Contact Us

Transmission mount for BMW 5/7 Series (E39 / E38 / E65 / E66) and ALPINA, covering the mount crossmember position common to the late E-series and early F-chassis BMW and ALPINA derivatives. Mount dimensions (34/70 mm length, 36/46/50 mm OD, M8 stud) reflect the range of crossmember variants used across this wide vehicle family.

• ALPINA B7 rated: Rubber load capacity covers the higher output of ALPINA's retuned engines on the E65 platform
• E65 / E66 platform compatibility: Mount geometry updated versus the E38 item to suit the revised crossmember on the 7-series redesign
• Z8 compatibility: Confirmed fitment to the E52 roadster transmission crossmember
• Three OD sizes within family: 36, 46, and 50 mm OD variants accommodate three distinct crossmember bore dimensions across this vehicle range
• Long-body option (70 mm): Spans the deeper crossmember section used on E65 / E66 long-wheelbase 7-series

• Single cross-reference covers multiple chassis codes, benefiting specialists maintaining a mixed late-E / ALPINA fleet
• Correct for the 3.0 L, 4.0 L, and 4.4 L petrol variants across E39, E38, E65, and Z8
• Resolves the low-speed torque converter lock-up vibration common on high-mileage E38 and E39 automatics
• Prevents propshaft flange contact with the tunnel floor on E65 long-wheelbase variants with sagged mounts
• Available as a rubber replacement element for the existing crossmember, avoiding a full bracket assembly cost
