Bmw F21 Series Front Suspension System Rubber Bushings

OE Numbers:
31126854729
Vehicle Application:
F21

Contact Us
PREV：BMW X4 F26 control arm rubber bushings, chassis damping bushings NEXT：BMW E46 3 Series X3 Z4 Trailing Arm Bush
  • Description
  • Advantages
  • Suitable For
  • Contact Us

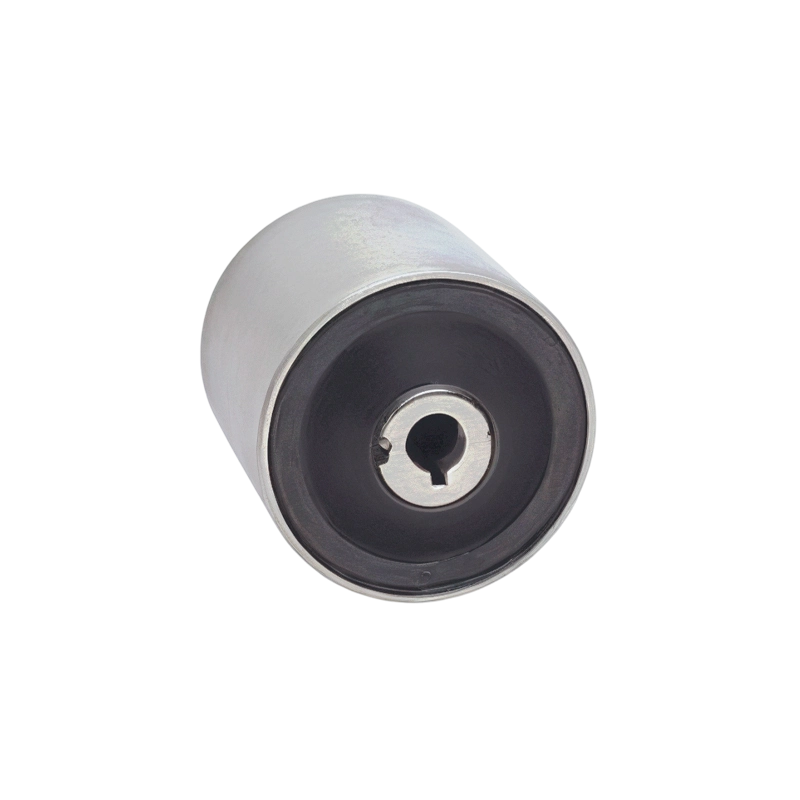

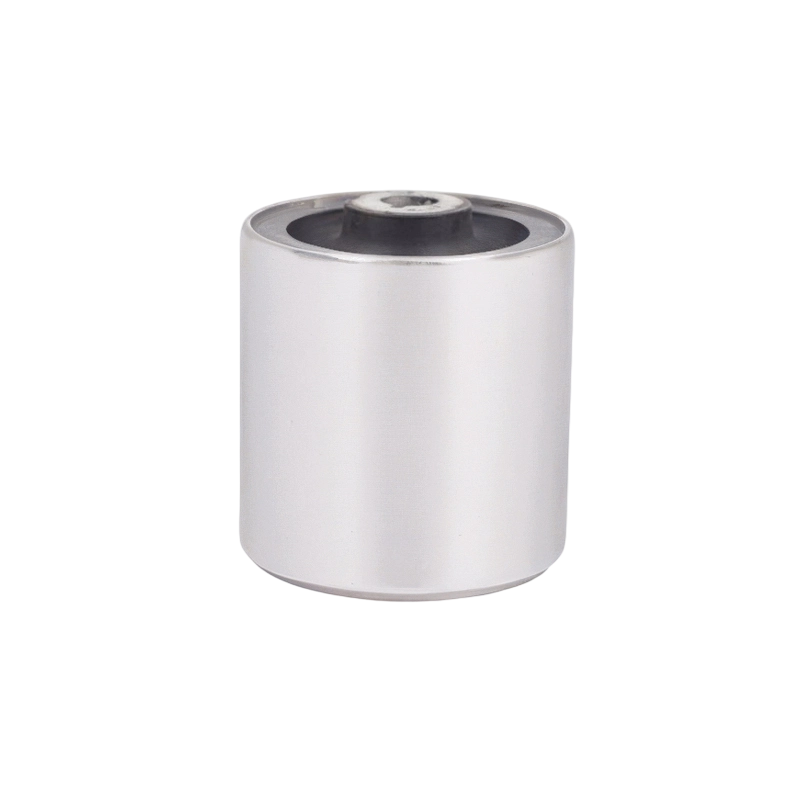

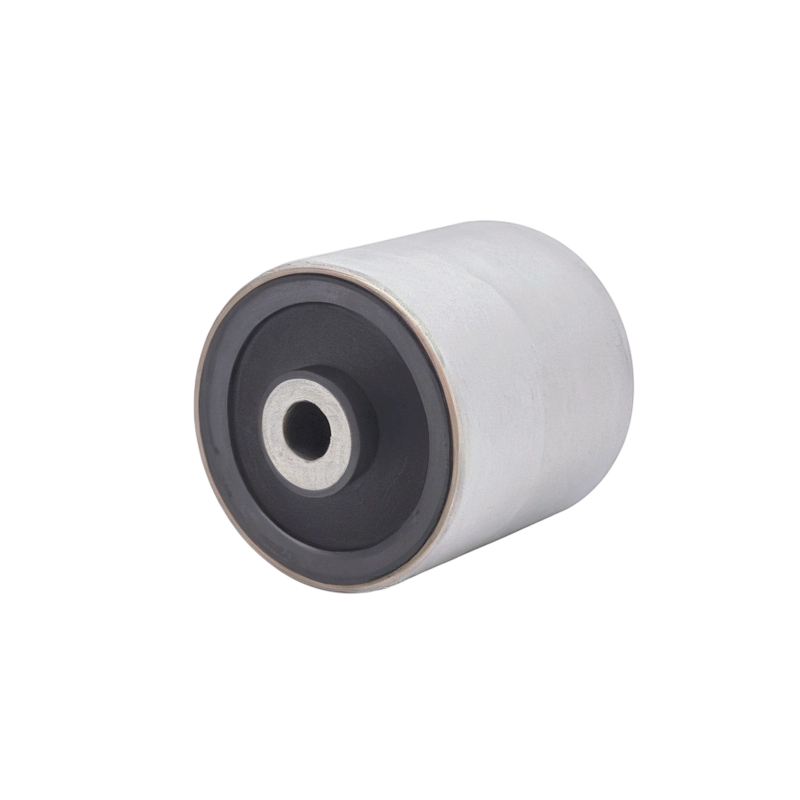

The BMW F21 Series Front Suspension System Rubber Bushing is a large-size elastic connecting element designed specifically for the front suspension system of the BMW F21 series. Installed at the hinge point between the control arm and the body or subframe, it is one of the most load-bearing critical components in the entire front suspension kinematic system. This bushing uses the compression and shear deformation of the rubber elastomer between the inner and outer metal tubes to flexibly disperse the impact force from the road surface. Simultaneously, it provides precise angular constraints and self-centering torque to the control arm during suspension movement, ensuring that the wheels always move along the designed trajectory during vertical bounce. Compared to similar products, the LJ-723 uses a larger outer diameter, making it suitable for high-load suspension nodes. It provides a wider rubber contact area and stronger load-bearing capacity, making it an excellent choice for chassis repair and preventative maintenance for F21 owners.

Large Outer Diameter Design: The 70mm outer diameter provides a larger working cross-sectional area for the rubber, resulting in lower stress per unit area under the same load conditions, thus slowing down rubber creep and fatigue failure.
Long Stroke Working Range: The 80mm length gives the bushing a larger axial working stroke, effectively absorbing axial displacement generated during large suspension bounces and preventing hard contact between metal parts.
Precision Inner Diameter Control: The 12mm inner diameter is manufactured strictly according to the original bolt specifications, ensuring no excess clearance between the bushing and the bolt after assembly, avoiding abnormal noise caused by loose fit.
High-Density Rubber Compound: The rubber hardness and damping coefficient are specially formulated for large-size specifications, maintaining suspension rigidity while ensuring sufficient elasticity, balancing comfort and handling stability.

Functional Dimensions: With its combination of a 70mm large outer diameter and 80mm working length, the LJ-723 provides a buffer area far exceeding that of standard bushings at high-load points in the BMW F21's front suspension, capable of simultaneously handling frequent minor vibrations on urban roads and lateral force impacts during rapid cornering on highways. Its precise elastic rebound characteristics help maintain a stable toe angle, preventing steering wheel drift or vibration, and effectively improving fatigue and handling confidence during long-distance driving.

Durability: The large-size rubber body itself has greater material reserves, resulting in a lower ratio of single compression deformation to overall size and a longer theoretical fatigue life. The product has undergone rigorous weathering tests, maintaining its elasticity without significant degradation within a temperature range of -40°C to +120°C. The vulcanization process combined with a high-strength metal liner prevents failure modes such as rubber body tearing or metal tube detachment under high-frequency vibration.

Compatibility: Precisely compatible with all BMW F21 models, with installation dimensions identical to original parts, eliminating the need for drilling or reaming, allowing for direct press-fit replacement. Standardized internal diameter specifications are compatible with mainstream suspension bolts, reducing the risk of incorrect procurement. Suitable for maintenance workshops, 4S stores, and individual car owners for self-maintenance, with a simple and clear installation process.
