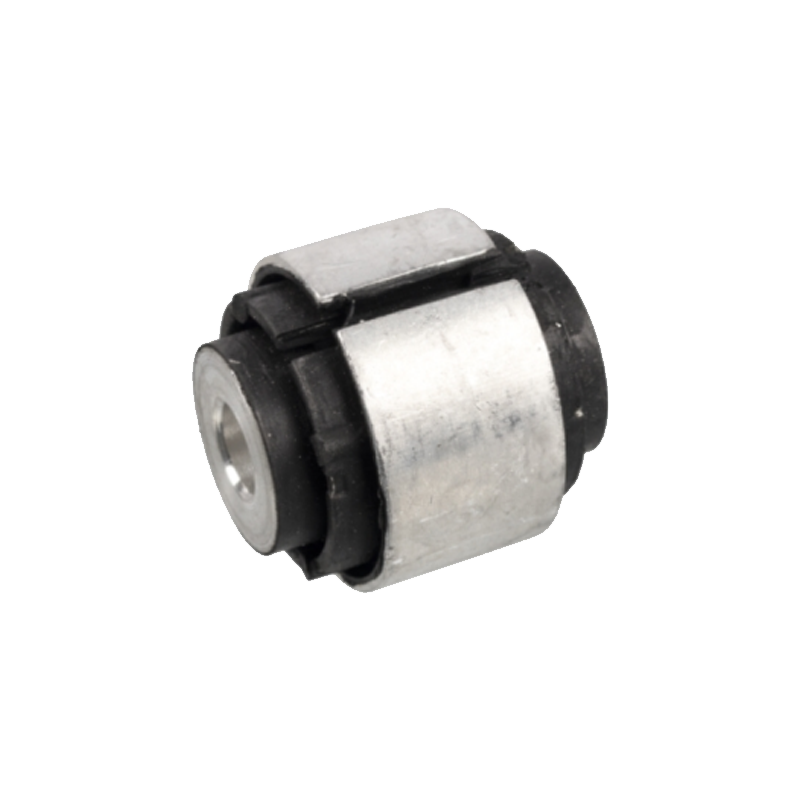

BMW 1 Series E81 Rear Axle Damping Bushings

Home / Products / Bushing / BMW Suspension Bushing / BMW 1 Series E81 Rear Axle Damping Bushings

BMW 1 Series E81 Rear Axle Damping Bushings

OE Numbers:
33326763092
Vehicle Application:
BMW (Imported) - 1 Series (E81) - 120 i  [N43 B20 A]  (2007.03 - 2012.09)
BMW (Imported) - 1 Series (E81) - 120 i  [N43 B20 A]  (2007.03 - 2012.09)
BMW (Imported) - 1 Series (E81) - 130 i  [N52 B30 A;N52 B30 BF;N52 B30 B]  (2006.09 - 2011.12)
BMW (Imported) - 1 Series (E81) - 130 i  [N52 B30 A;N52 B30 BF;N52 B30 B]  (2006.09 - 2011.12)
BMW (Imported) - 1 Series Convertible (E88) - 120 i  [N43 B20 A]  (2007.12 - 2013.10)
BMW (Imported) - 1 Series Convertible (E88) - 120 i  [N43 B20 A]  (2007.12 - 2013.10)
BMW (Imported) - 3 Series (E90) - 318 i  [N46 B20 B]  (2005.09 - 2007.08)
BMW (Imported) - 3 Series (E90) - 318 i  [N43 B20 A]  (2007.09 - 2011.10)
BMW (Imported) - 3 Series (E90) - 318 i  [N46 B20 B]  (2005.09 - 2007.08)
BMW (Imported) - 3 Series (E90) - 318 i  [N43 B20 A]  (2007.09 - 2011.10)
BMW (Imported) - 3 Series (E90) - 320 i  [N46 B20 C;N46 B20 BD;N46 B20 CB]  (2004.12 - 2007.08)
BMW (Imported) - 3 Series (E90) - 320 i  [N43 B20 A]  (2007.09 - 2011.10)
BMW (Imported) - 3 Series (E90) - 320 i  [N46 B20 C;N46 B20 BD;N46 B20 CB]  (2004.12 - 2007.08)
BMW (Imported) - 3 Series (E90) - 320 i  [N43 B20 A]  (2007.09 - 2011.10)
BMW (Imported) - 3 Series (E90) - 320 si  [N45 B20 A]  (2005.09 - 2006.08)
BMW (Imported) - 3 Series (E90) - 320 si  [N45 B20 A]  (2005.09 - 2006.08)
BMW (Imported) - 3 Series (E90) - 325 i  [N52 B25 A;N52 B25 B;N52 B25 BF]  (2004.12 - 2011.12)
BMW (Imported) - 3 Series (E90) - 325 i  [N52 B25 A;N52 B25 B;N52 B25 BF]  (2004.12 - 2011.12)
BMW (Imported) - 3 Series (E90) - 330 i  [N52 B30 A;N52 B30 BF]  (2004.12 - 2011.10)
BMW (Imported) - 3 Series (E90) - 330 i  [N53 B30 A]  (2007.09 - 2011.10)
BMW (Imported) - 3 Series (E90) - 330 i  [N52 B30 A;N52 B30 BF]  (2004.12 - 2011.10)
BMW (Imported) - 3 Series (E90) - 330 i  [N53 B30 A]  (2007.09 - 2011.10)
BMW (Imported) - 3 Series (E90) - 335 i  [N54 B30 A;N55 B30 A]  (2006.09 - 2011.12)
BMW (Imported) - 3 Series (E90) - 335 i  [N54 B30 A;N55 B30 A]  (2006.09 - 2011.12)
BMW (Imported) - 3 Series (E90) - M3  [S65 B40 A]  (2007.12 - 2011.10)
BMW (Imported) - 3 Series (E90) - M3  [S65 B40 A]  (2007.12 - 2011.10)
BMW (Imported) - 3 Series Touring (E91) - 320 i  [N46 B20 C;N46 B20 B]  (2005.09 - 2012.06)
BMW (Imported) - 3 Series Touring (E91) - 320 i  [N46 B20 C;N46 B20 B]  (2005.09 - 2012.06)
BMW (Imported) - 3 Series Touring (E91) - 325 i  [N52 B25 A]  (2004.12 - 2008.08)
BMW (Imported) - 3 Series Touring (E91) - 325 i  [N52 B25 A]  (2004.12 - 2008.08)
BMW (Imported) - 3 Series Convertible (E93) - 320 i  [N43 B20 A]  (2007.03 - 2013.10)
BMW (Imported) - 3 Series Convertible (E93) - 320 i  [N43 B20 A]  (2007.03 - 2013.10)
BMW (Imported) - 3 Series Convertible (E93) - 330 i  [N53 B30 A]  (2007.03 - 2013.10)
BMW (Imported) - 3 Series Convertible (E93) - 330 i  [N52 B30 AF]  (2010.03 - 2013.10)
BMW (Imported) - 3 Series Convertible (E93) - 330 i  [N53 B30 A]  (2007.03 - 2013.10)
BMW (Imported) - 3 Series Convertible (E93) - 330 i  [N52 B30 AF]  (2010.03 - 2013.10)
BMW (Imported) - 3 Series Convertible (E93) - 335 i  [N54 B30 A;N55 B30 A]  (2006.12 - 2013.10)
BMW (Imported) - 3 Series Convertible (E93) - 335 i  [N54 B30 A;N55 B30 A]  (2006.12 - 2013.10)
BMW (Imported) - 3 Series Coupe (E92) - 320 i  [N43 B20 A]  (2007.03 - 2013.06)
BMW (Imported) - 3 Series Coupe (E92) - 320 i  [N43 B20 A]  (2007.03 - 2013.06)
BMW (Imported) - 3 Series Coupe (E92) - 325 i  [N52 B25 A;N52 B25 AF;N52 B25 BF]  (2006.06 - 2010.02)
BMW (Imported) - 3 Series Coupe (E92) - 325 i  [N52 B25 A;N52 B25 AF;N52 B25 BF]  (2006.06 - 2010.02)
BMW (Imported) - 3 Series Coupe (E92) - 330 i  [N52 B30 A;N52 B30 BF;N52 B30 AF]  (2006.09 - 2010.02)
BMW (Imported) - 3 Series Coupe (E92) - 330 i  [N52 B30 A;N52 B30 BF;N52 B30 AF]  (2006.09 - 2010.02)
BMW (Imported) - 3 Series Coupe (E92) - 335 i  [N54 B30 A;N55 B30 A]  (2006.06 - 2013.06)
BMW (Imported) - 3 Series Coupe (E92) - 335 i  [N54 B30 A;N55 B30 A]  (2006.06 - 2013.06)
BMW (Imported) - 3 Series Coupe (E92) - M3  [S65 B40 A]  (2007.06 - 2013.06)
BMW (Imported) - 3 Series Coupe (E92) - M3  [S65 B40 A]  (2007.06 - 2013.06)
BMW (Imported) - X1 (E84) - xDrive 28 i  [N20 B20 A]  (2011.12 - 2015.06)
BMW (Imported) - X1 (E84) - xDrive 28 i  [N20 B20 A]  (2011.12 - 2015.06)

Contact Us
PREV：BMW E46 3 Series X3 Z4 Trailing Arm Bush NEXT：BMW X5 X6 F15 F16 Front Control Arm Large Diameter Damping Bush
  • Description
  • Advantages
  • Suitable For
  • Contact Us

The BMW 1 Series E81 rear axle damping bushings are specifically designed for imported BMW 1 Series E81 models (produced from March 2007 to September 2012). They are an indispensable elastic vibration damping connection between the rear axle assembly and the body structure. The rear axle bushing node is one of the most complex locations in the entire rear suspension system, bearing the combined load of various forces. It must simultaneously cope with the vertical impact forces from the rear wheel's vertical bounce, the longitudinal forces during acceleration and deceleration, and the lateral forces during cornering. The LJ-737, through a precisely tuned rubber elastomer, provides appropriate elastic compliance within this three-dimensional force system. This prevents rigid vibration transmission that could worsen chassis noise while ensuring the rear axle's positioning accuracy relative to the body remains stable. It is a fundamental component for maintaining the dynamic performance and driving feel of the rear suspension.

Approximate Square Cross-Section Ratio: The near 1:1 cross-section ratio of 46.5mm outer diameter to 47mm length ensures similar stiffness characteristics in both axial and radial directions, providing a relatively balanced cushioning capacity in all directions.
Precision Machining of Inner Diameter: Strictly controlled 12mm inner hole tolerance ensures a zero-waste fit with the rear axle mounting bolts, preventing rear axle noise and positioning misalignment due to looseness.
Compact Structural Design: Achieving sufficient rubber volume within a small installation space ensures that the cushioning effect is not compromised by space constraints.
High-Strength Vulcanization Process: Rubber and metal skeleton are vulcanized as a single unit, resulting in high shear strength at the interface and preventing interface delamination under long-term vibration loads.

Functional Dimension: The core function of the rear axle bushing lies in balancing the seemingly contradictory needs of "vibration isolation" and "positioning." LJ-737, through a precise ratio of rubber hardness and geometry, provides sufficient vibration isolation while constraining the displacement of the rear axle relative to the vehicle body within permissible limits. This prevents tire wear and vehicle misalignment due to rear axle geometric misalignment, achieving an optimal balance between comfort and handling stability. Durability Dimension: The E81 1 Series rear axle joints are subjected to frequent impacts from road surfaces, placing extremely high demands on the bushing's fatigue resistance. The LJ-737 rubber body has undergone specialized fatigue durability testing, proving it can withstand over a million cycles of compressive loads without cracking or permanent deformation. The rust-proof treatment of the metal frame ensures structural integrity even after long-term use on snow-covered and salt-spread roads in the north or in high-humidity environments in the south.
Compatibility Dimension: Precisely compatible with all BMW 1 Series E81 platform models (March 2007 – September 2012), covering all vehicles equipped with N43/B20A engines during that era. The installation interface dimensions are completely identical to the original factory specifications, requiring no modification for replacement; pressing can be completed with ordinary repair tools. Suitable as a standard spare part for major overhauls or preventative maintenance of the E81 model's rear axle.
