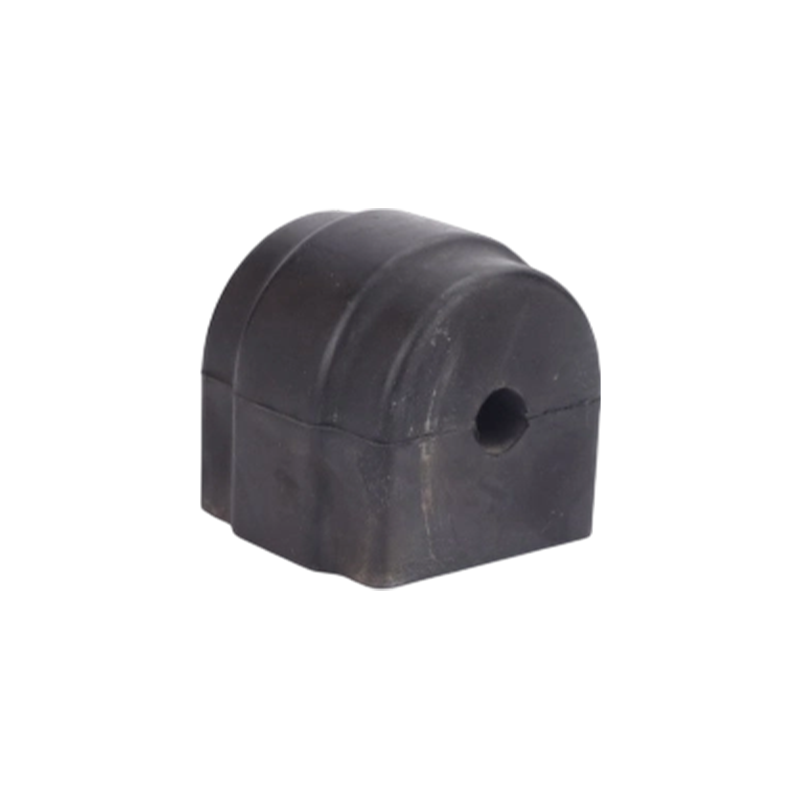

Stabilizer Bushing 57x60x55x12 for BMW F10 F11 5 Series

OE Numbers:
33556788861

Vehicle Application:
BMW Imported 5 Series (F10, F11, F18 Platforms)
520i 2.0, 523i 2.5, 528i 2.0, 528i xDrive 2.0
530i 3.0, 535i 3.0, 550i 4.4, ActiveHybrid 3.0

Contact Us
PREV：Stabilizer Bar Bushing Assembly – OE Replacement for BMW 3 Series, Direct Fit, 55 mm Length, 24.6 mm Inner Diameter NEXT：Stabilizer Bushing Assembly for BMW E53 X5, Open Rubber, Dimension 46x48.5x45x22mm, Replacement Core
  • Description
  • Specifications
  • Advantages
  • Contact Us

The Stabilizer Bushing is an open-type rubber suspension component designed to connect the stabilizer bar to the vehicle chassis. It functions to absorb vibrations and regulate lateral force transfer during cornering. This part is configured as a universal LJ-613 insert replacement, allowing the existing outer metal shell to remain on the vehicle during the repair process.

Type: Split Rubber Bushing (Open-type)
Structure: Insert Replacement (Core only, model LJ-613)
Dimensions: 57mm x 60mm x 55mm x 12mm
Fitment: BMW F10, F11, F18 Platforms

Split Structure: The open-type design enables the insert to be installed directly onto the stabilizer bar without requiring a hydraulic press, simplifying the assembly process.
Insert Configuration: Functions as a core replacement to retrofit the original OE mount, reducing labor by eliminating the need to extract the pressed-in outer shell.
Dimensional Precision: Manufactured to a 57x60x55x12mm profile to ensure a secure interface with the OE bracket and the 12mm inner diameter stabilizer bar.
