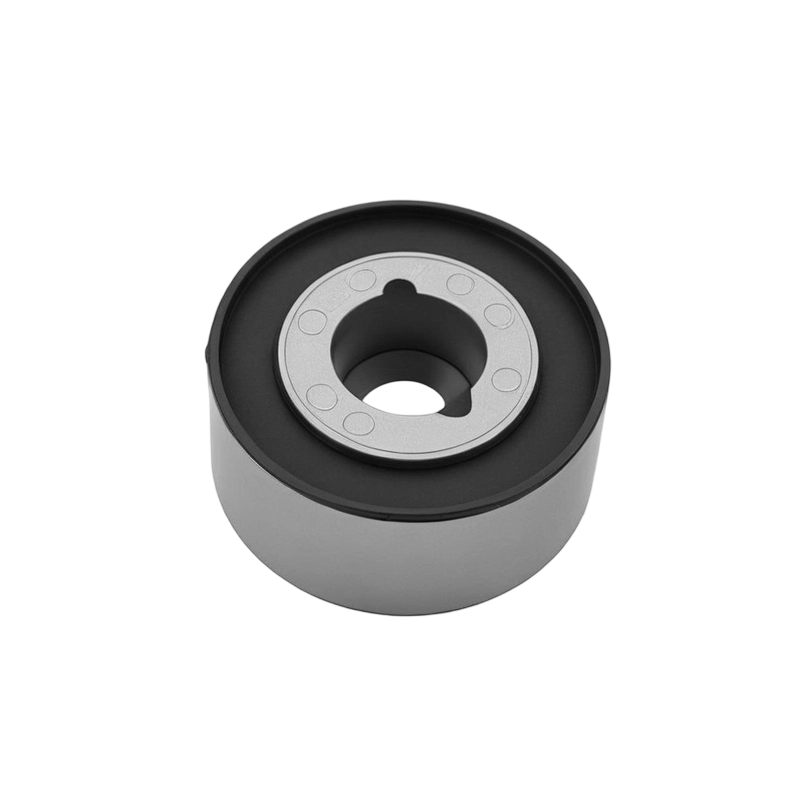

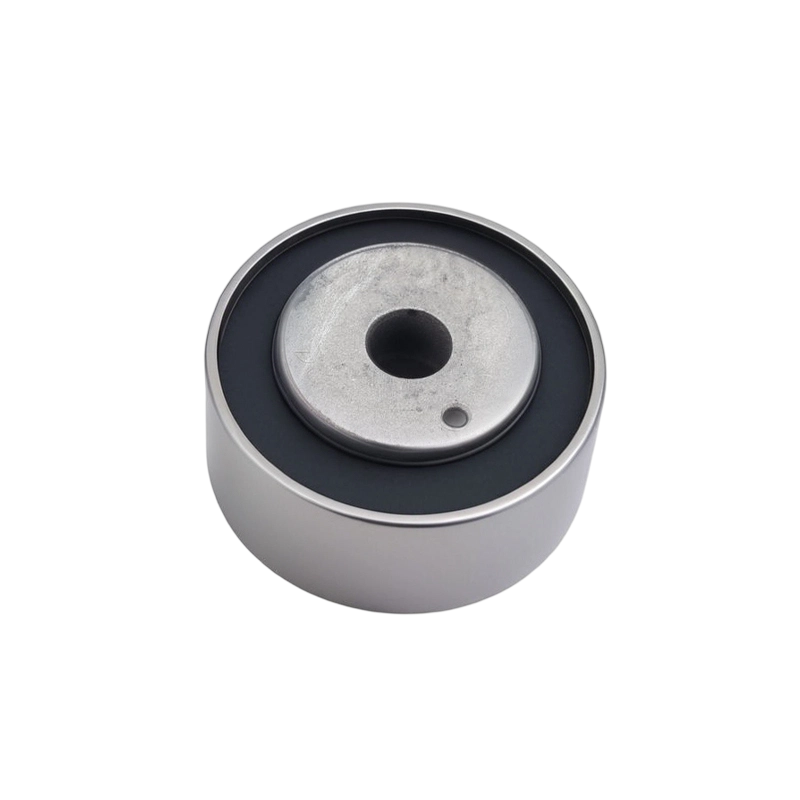

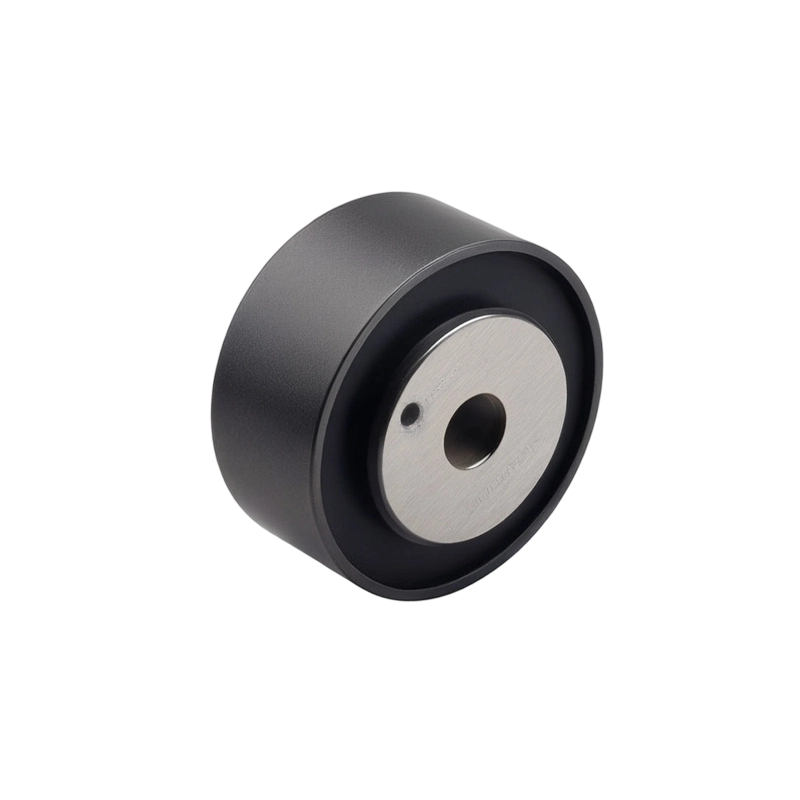

Replacement Rear Leaf Spring Bushing for Mercedes-Benz (66mm)

Home / Products / Bushing / Mercedes-Benz Suspension Bushing / Replacement Rear Leaf Spring Bushing for Mercedes-Benz (66mm)

Replacement Rear Leaf Spring Bushing for Mercedes-Benz (66mm)

OE Numbers:
1293512142

Compatible Vehicle Series:
C-CLASS W203 2000/05-
C-CLASS Coupe CL203 2001/03-
C-CLASS T-Model S203 2001/03
CLK C209 2002/06-
CLK Convertible A209 2003/02-
E-CLASS W210 1995/06-2002/03
E-CLASS Estate S210 1996/06-2003/03
Mercedes-Benz (Imported) - SLK (R171) - 200 Kompressor (171.442)  [M 271.944]  (2004.03 - 2011.02)
Mercedes-Benz (Imported) - SLK (R171) - 200 Kompressor (171.445)  [M 271.954]  (2008.01 - 2011.02)
Mercedes-Benz (Imported) - SLK (R171) - 280 (171.454)  [M 272.942]  (2005.01 - 2011.02)
Mercedes-Benz (Imported) - SLK (R171) - 350 (171.456)  [M 272.963]  (2004.06 - 2011.02)
Mercedes-Benz (Imported) - SLK (R171) - 350 (171.458)  [M 272.969]  (2008.01 - 2011.02)
Mercedes-Benz (Imported) - SLK (R171) - 55 AMG (171.473)  [M 113.989]  (2004.06 - 2011.02)

Contact Us
PREV：Professional Grade Suspension Bushing for Mercedes-Benz (80mm Thickness) NEXT：High-Strength Leaf Spring Bushing for Mercedes-Benz (4.5x70mm)
  • Description
  • Advantages
  • Suitable For
  • Contact Us

This 66mm rear axle leaf spring replacement bushing is compatible with several mainstay series in Mercedes-Benz chassis history, including the C-Class (W203), E-Class (W210, S210), CLK (C209), and the SLK (R171) sports car. As a crucial connection point in the rear axle steering system, this bushing is responsible for bearing the reaction force of the drive axle and maintaining the dynamic camber angle of the rear wheels. It is a cost-effective maintenance kit for resolving rear axle "shaking" and uneven tire wear issues in older Mercedes-Benz models.

Precise geometric parameters: 29mm width, 15mm inner diameter, 66mm outer diameter. The product has a compact structure, and the bonding strength of the inner steel and outer rubber has undergone high-load fatigue testing to ensure no displacement during frequent acceleration and deceleration.

Due to its precise outer diameter (66mm) and width (29mm) ratio, it instantly locks the rear axle suspension clearance after installation, completely eliminating chassis impact noise when the vehicle goes over speed bumps. Its high-compression rubber formula has been optimized for the rear-heavy characteristics of models such as W210 and W203, which can maintain the height consistency of the rear and improve the visual inaccuracy of the whole vehicle caused by the collapse of the rubber bushing.
