Engine Mount for Mercedes-Benz A-Class / B-Class (W169/W245)

OE Numbers:
1692400717 | A1692400717
1692401417 | A1692401417

Compatible Models:
Mercedes-Benz
A-Class (W169)
B-Class (W245)

Key Dimensions:
Length: 135 mm
Width: 85 mm
Thickness: 78 mm

Contact Us
PREV：Rubber Metal Engine Bracket for Mercedes-Benz A-Class (W168) A160 NEXT：Engine Mount for Mercedes-Benz A-Class / B-Class (W169/W245)
  • Description
  • Advantages
  • Suitable For
  • Contact Us

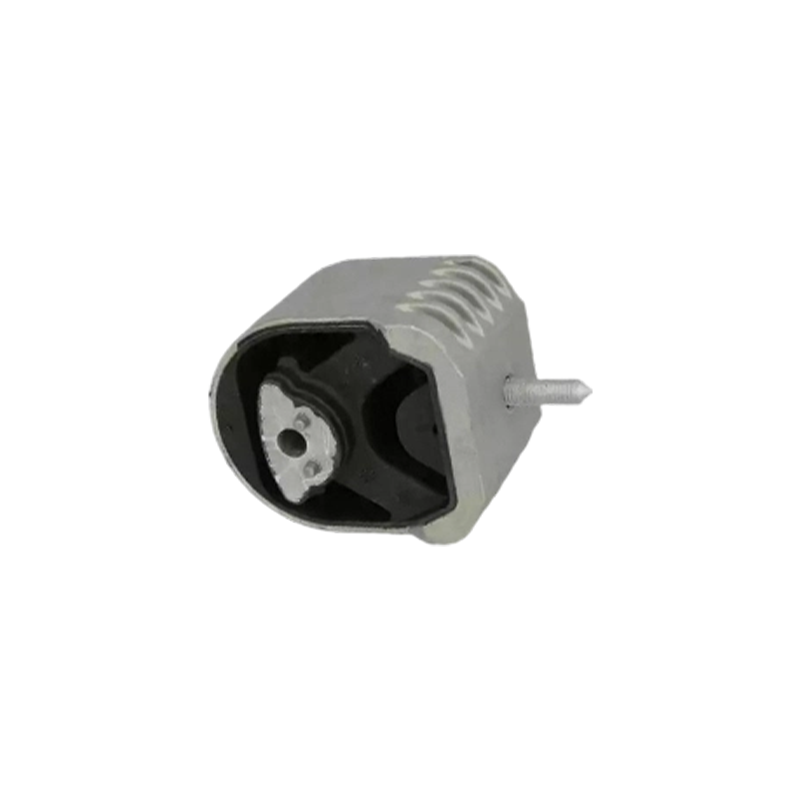

Engine mount for Mercedes-Benz A-Class (W169) and B-Class (W245), providing primary support on the gearbox side of the engine assembly. At 135 × 85 × 78 mm, it matches the OEM envelope and carries the vertical and lateral loads generated by the transversely mounted four-cylinder unit.

• High-load rubber formulation: Engineered to handle the elevated torque reaction of the W169 / W245 front-drive layout
• Moulded-in metal sleeves: Prevent bush deformation at bolt-down torque, preserving correct preload
• Three-axis load tolerance: Handles simultaneous vertical, lateral, and fore-aft inputs without creep
• Anti-fatigue bonding agent: Resists rubber-to-metal delamination under cyclic stress
• Dimensional accuracy: 135 × 85 × 78 mm verified against OEM drawing tolerances

• Restores correct engine height: Prevents driveshaft CV joint from running at excessive angle
• Reduces gear-change shudder: Damps the torque spike at clutch engagement on manual variants
• Suitable for both petrol and diesel engine versions of the W169 / W245 platform
• Direct replacement requiring no adapter brackets or spacers
• Extends adjacent component life by preventing excessive powertrain displacement
